DS20 STI/CIS intelligibility go/nogo
Detail

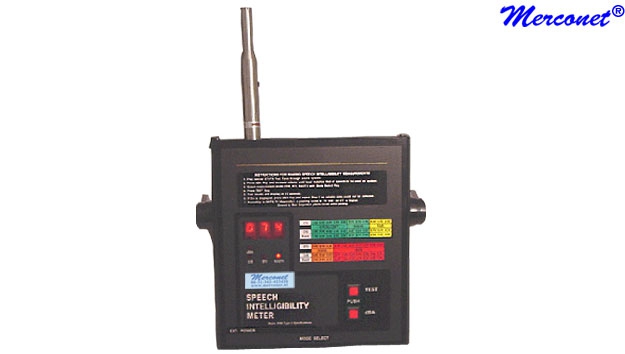

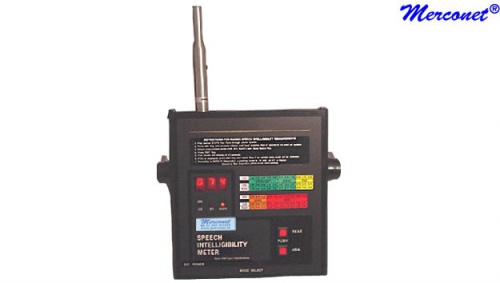

The DS20 Intelligibility Analyser Privacy measures Sound Pressure Level and Speech Intelligibility Index in CIS or STI formats using the DA43 Software. The DS20 includes DA44 Privacy Index.
Kenmerk
- Portable digital Speech Intelligibility/Privacy Meter
- Displays results in CIS, STI or PI formats
- Measurements conform to IEC60268-16
- Factors in the effects of room acoustics and background noise
- RS232 computer interface
- CIS and STI Intelligibility measurement modes
- STI-PA Test Tone CD
- SPL mode
- Serial Port
- Meten NEN2575
Specificatie
| Measurement Range: | 25Hz - 20kHz. |
| Inputs: | Microphone: Balanced, XLR 3 pin receptacle |
| Outputs: | RS232 port: DB9M |
| Accuracy: | Typically ±1% |
| Display: | Test Result & SPL readings are 3 digit via 7 segment LED readout |
| Case Material: | Carry Case - 18" x 13" x 7"; lbs. High Impact ABS |
| Power Requirements: | Batteries: Eight "AA" alkaline or nicad |
| External: 12Vdc @ 500mA via 2.1mm jack | |
| Size: | 10" x 10 ¼" x 2 ½"(W x H x D) |
| Weight: | 2 lbs. |
| Goedkeuring: | CE, RoHS and WEEE |
| ISO 9921 | |
| E366.803 | |
| IEC 60268-16 | |
| 60849 | |
| ANSI S3.05 |
Optie
- ACB3 Certificatie calibratie DS20
- CU65 Meten aan audio systemen
- KO10 Instrumentkoffer medium (105 mm)
- TB10 STI/CIS Generator
Prijs
3.872,00 € (3.200,00 € excl. btw) stuk
