AG60 Prototype bord pro

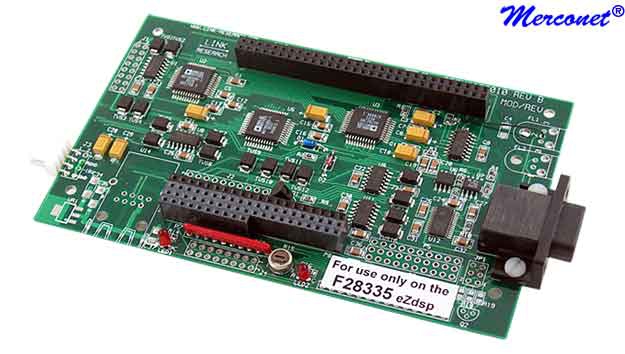

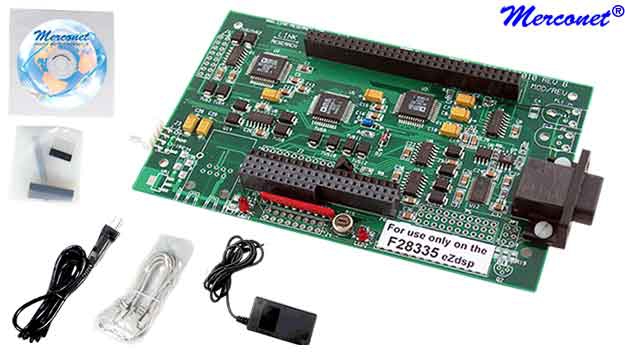

The AG60 is a precision, 14-bit, data acquisition daughtercard designed to operate with the eZdsp™ development system. The AG60 is the standard board containing 4 14-bit A/D Channels, 8 14-bit D/A channels, an RS-232 serial port, 2 general purpose LEDs, 8 general purpose input lines.

• Hardware:
  - 4 A/D input channels, single ended, ±10V range, simultaneous sampling
  - 8 D/A output channels, single ended, ±10V range, simultaneous output update
  - An RS232 asynchronous serial communications interface
  - A software controllable output signal with a +15V to ground swing
  - Eight general purpose digital logic inputs
  - Two general use LEDs
  - Optional support for up to 8 A/D channels
  - Optional support for a fiber optic asynchronous communications interface
  - Optional support for a 10/100 802.3 Ethernet interface
  - Support for up to 16 A/D and 16 D/A channels by using the optional model 8x8 daughtercard
• Software:
  - Three sample Code Composer Studio projects are included with the daughtercard. The first demonstrates a 3 phase, 60 Hz sinewave generator. This project also includes the necessary high-level functions needed to configure and access the serial port as well as all of the other hardware present on the board. The second CCS project is identical to the first, except that it is built using the TI DSP/BIOS real time kernel. This project runs out of internal RAM. The third project is similar to the second, except that it has been configured to run out of the onboard FLASH.
• Applications:
  - 3 Phase power supply designs
  - 3 Phase power inverter designs
  - Line power monitoring
  - Power factor correction control
  - Motor control
