AIS4 Test Set LED/Laser AIS5/AIS6/AIS7 ST/SC/FC



Bestel
The add to cart button will appear once you select the values above
Detail

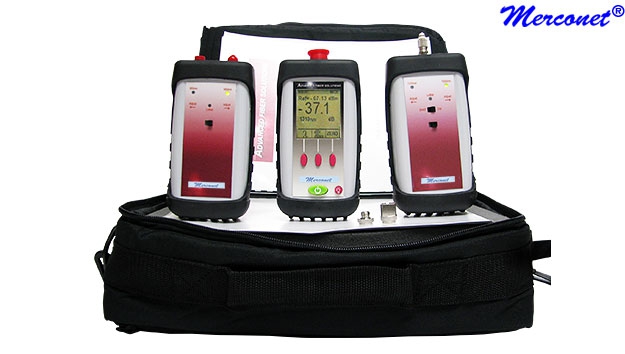

The AIS4 is a Test kit designed for both multimode and single-mode applications. The AIS4 combines the AIS5 optical power meter, AIS7 Laser sender and the AIS6 LED sender. This kit is ideally suited for testing fiber optic networks, both Single mode and multimode cables. The AIS5 power meter includes such features as a enlarged screen for optimal viewing, extended battery life (100+ hours), tone detection (270Hz, 330Hz, 1KHz & 2KHz), dBm\dB\Watts read out and an auto off feature (optional 10 or 30 min). The unit utilizes an InGaAs detector and its calibrated wavelengths include 850/1300/1310/1490/1550 & 1625nm. All wavelengths have a Set Reference feature which stores selected wavelengths absolute value to memory. The AIS7 is a 1310nm /1550nm Laser light source, which comes equipped with interchangeable ST, FC and SC connector adapters). The AIS6 is a 850nm /1330nm LED light source, both LED's are potted in fixed ST housings.

Kenmerk
  • Compact light weight carrying case
  • 850/1300/1310/1490/1550 & 1625nm
  • dBm/W (absolute) + dB (relative) measurement
  • Extended Graphical display for optimal viewing
  • Zero reference with dBm value displayed
  • dBm and Watts displayed simultaneously
  • Set Reference Feature for all calibrated wavelengths
  • 0.1dB /0.01dB Resolution (Selectable)
  • Display back light
  • Auto power off (10 or 30 min option)
Specificatie
AIS5 Specifications
Applications: Single Mode, Multimode
Calibrated Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
Dynamic Range: ~+6dBm to -60dBm
Detector Type: 1mm InGaAs
Accuracy (@25°C, -20.0dBm): ±0.25 dB
Measurement Units: dBm (absolute)\Watts\dB (relative)
Resolution: 0.1 or 0.01 dB
Controls: 5 Soft Buttons
Buttons: On/Off, Backlight, λ , dB-dBm, Zero Reference
Power: 1 x 9V Batteries or AC Power Converter
Low Battery Indicator: Yes
Display: Graphical LCD with Backlight
Adaptor Options: ST, SC, FC, 2.5mm Universal & LC (other adapters also available)
Auto-Shutdown: Yes
Protective Rubber Boot: Yes
Testing Reference Guide: Yes
Enclosure Size: Compact Handheld (L-4.94"/W-2.75"/H- 1.2")
Operation Temperature: -10°C to +50°C (45% Hum, non condensing)
Storage Temperature: -20°C to +60°C (75% Hum, non condensing)
Goedkeuring: CE, RoHS en WEEE

AIS7 Specifications
Applications: Single mode, outside plant and long haul applications
Wavelengths (λ): 1310nm & 1550nm
Wavelength Peak: 1310nm ± 10nm
  1550nm ± 10nm
Output Type: Laser
Output Power: >-5.0dBm @1310 & 1550
Into single mode fiber (Side adjustable trim pots for output power level adjustment)
Stability per hour (after 5 min warm up): Less than 0.1 dB
Connector Style: ST/SC/FC (Interchangeable)
Modulated Frequencies: 2Khz
Battery: 1 x 9V
Emitter Type: Class 1 Laser Product
Protective Rubber Boot: Yes
Enclosure Size: Compact Handheld (L-4.94"/W-2.75"/H- 1.2")
Operation Temperature: -10°C to +50°C (45% Hum, non condensing)
Storage Temperature: -20°C to +60°C (75% Hum, non condensing)
Goedkeuring: CE, RoHS en WEEE

AIS6 Specifications
Applications: Premises, campus cabling networks with Multimode
Wavelengths (λ): 850nm & 1300nm
Wavelength Peak: 850nm ± 30nm
  1300nm ± 30nm
Output Type: LED
Output Power: >-20.0dBm @850 & 1300 Into 62.5 micron fiber (Side adjustable trim pots for output power level adjustment)
Stability per hour (after 5 min warm up): Less than 0.1 dB
Connector Style: 1300nm - ST
  850nm - ST
Modulated Frequencies: N/A
Battery: 1 x 9V
Emitter Type: Class 1 LED Product
Protective Rubber Boot: Yes
Enclosure Size: Compact Handheld (L-4.94"/W-2.75"/H- 1.2")
Operation Temperature: -10°C to +50°C (45% Hum, non condensing)
Storage Temperature: -20°C to +60°C (75% Hum, non condensing)
Goedkeuring: CE, RoHS en WEEE
Content
- AIS5 Meter ST/SC/FC
- AIS6 LED Zender ST
- AIS7 Laser Zender ST/SC/FC
- OA24 FC/SC/ST adapter
- OB05 Alcohol schoonmaak doekjes
- AAI6 Certificatie calibratie zender
- GB10 Gebruiksaanwijzing
Optie
- AAH7 Microscoop
- AAI6 Certificatie calibratie zender
- CC01 Certificatie calibratie ontvanger
- CU85 Glasvezel cursus
- KO15 Instrumentkoffer medium (157 mm)
Prijs
2.190,10 € (1.810,00 € excl VAT) each
