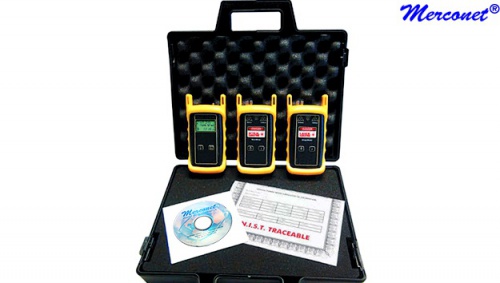

Content
Ontvanger
Zender LED
Zender Laser
NIST certificaat
Koffer
Rubber behuizing
Engelse qebruiksaanwijzing
OR97 Test Set OP15/OP81/OP50
Detail
The OR97 is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single-mode networks. The OR97 is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The OR97 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule. The Dual OWL is a 850/1300nm NIST traceable multimode light source. Its dual wavelength outputs are temperature-stabilized for accurate measurements. The Zender Laser is a NIST traceable singlemode light source. Its dual wavelength outputs (1310nm/1550nm) are temperature-stabilized for accurate measurements. Three connector options are available (ST, SC, and FC).
Kenmerk
- Economical option for quick attenuation and loss testing of both multimode and singlemode networks
- Easy-to-read 4-digit 7-segment LCD display
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NIST traceable
Specificatie
| Ontvanger | |
| Measurement Range: | +5 to -60 dBm |
| Detector: | InGaAs 1mm |
| Calibrated Wavelengths: | 850nm, 1300, 1310nm, 1550nm |
| Accuracy range 0 to -45 dBm: | ±0.15 dB |
| Linearity range 0 to -45 dBm: | ±0.20 dB |
| Resolution: | 0.01 dBm |
| Battery Life: | up to 250 hours |
| Operating Temperature: | -10 to 55 °C |
| Storage Temperature: | -30 to 70 °C |
| NIST Traceable: | Yes |
| Battery Capacity Display: | Yes |
| Connector: | Universeel schroef |
| Adapter: | 2.5mm ST/SC/FC |
| Optioneel: 1.25mm LC, MU en SFF | |
| Dimension: | Breedte: 7 cm (2.75”) |
| Hoogte: 12, 5cm (4.94”) | |
| Diepte: 3,3 cm (1.28”) | |
| Weight: | 154 gram |
| Approval: | EN 61326-1 |
| EN 61010-1 | |
| Goedkeuring: | CE, RoHS en WEEE |
| Zender LED | |
| Launch Method: | LED |
| Connector: | SC |
| Center Wavelength (850nm): | 850 ±30nm |
| Center Wavelength (1300nm): | 1290nm min1350nm max |
| Spectral Width (FWHM; 850 nm): | 60 nm |
| Spectral Width (FWHM; 1300nm): | 170 nm |
| Output Power: | -20.0 dBm |
| Initial Accuracy: | 0.1 dB |
| Fiber Type: | Multimode |
| Battery Life: | 40 hrs. |
| Battery Capacity Display: | Yes |
| Operating Temperature: | 0 to 55°C |
| Storage Temperature: | 0 to 75°C |
| Dimensions: | Breedte: 7 cm (2.75”) |
| Hoogte: 12, 5cm (4.94”) | |
| Diepte: 3,3 cm (1.28”) | |
| Weight: | 154 gram |
| Approval: | EN 61326-1 |
| EN 61010-1 | |
| Goedkeuring: | CE, RoHS en WEEE |
| Zender Laser | |
| Launch Method: | FP Laser |
| Connector: | ST, SC, or FC |
| Center Wavelength (1310nm): | 1310 ±30nm |
| Center Wavelength (1550nm): | 1550 ±30nm |
| Spectral Width (FWHM): | 2 nm |
| Output Power: | -10.0 dBm |
| Initial Accuracy: | 0.1 dB |
| Fiber Type: | Singlemode |
| Battery Life: | 25 hrs. |
| Battery Capacity Display: | Yes |
| Operating Temperature: | 0 to 55°C |
| Storage Temperature: | 0 to 75°C |
| Dimensions: | Breedte: 7 cm (2.75”) |
| Hoogte: 12, 5cm (4.94”) | |
| Diepte: 3,3 cm (1.28”) | |
| Weight: | 154gram |
| Approval: | EN 61326-1 |
| EN 61010-1 | |
| Goedkeuring: | CE, RoHS en WEEE |
Optie
1.25mm LC, MU en SFF Adapter
Prijs
1.530,65 € (1.265,00 € excl. btw) stuk
