Detail

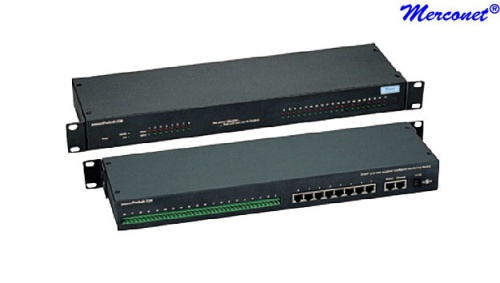

The DL46 system enables connection and monitoring of devices like HVAC Systems, Security Equipment, UPS, Generators, Industrial Equipment and much more. The DL46 embedded web server makes the addition of these devices easy. The DL46 comes with 8 autoSense Intelligent sensor ports, for connecting a wide range of our intelligent sensors. An additional 20x 2-wire dry contact ports are provided giving a total of up to 28 dry contact ports. The specially designed 2 wire dry contact ports are easy to use and allow you to make your own dry contact cables quickly. The DL46 is a completely embedded host. It is equipped with a TCP/IP stack, internal web Server, e-mail and Full SNMP functionality. The DL46 safeguards your infrastructure, resources and investment from external disaster before it happens.
Kenmerk
- Fully embedded TCP / IP and Web Server
- Built-in notification Suite
- 8 autoSense ports for Pro sensors
- Web-Based Interface for easy configuration and monitoring
- Login for User and Administrator for increased security
- Battery backed time of day clock for an accurate system date and time
- A standalone product without any external hardware and software dependencies
- Microcode firmware updates over the Internet
- Customized color configuration for displaying alerts
- Network Management System integration
- An additional 20, 2 wire dry contact input ports are provided, giving a total of up to 28 dry contact ports
Specificatie
| Inputs: | x8 RJ-45 ports for connecting Pro sensors 20, 2 Wire dry contacts. Input only up to 5VDC and up to 40VDC in opto isolated mode using internal jumper setting |
| Network Interface: | Standard 100MB Full Duplex |
| | Ethernet RJ-45 Port |
| Status Indictors: | LED indication for Power |
| | LED for Network Connectivity |
| | LED for sensor online and threshold status |
| Output: | Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports |
| Operating temperature: | Min. -35° C - Max.80° C |
| Operating humidity: | Min. 20% - Max. 80% (Non-Condensing) |
| Power Requirements: | Voltage 7.0 - 9 V / >= 3 Amp |
| Power Consumption: | 1.90 Watt, 0.21A |
| Dimension: | 457mm x 127 mm x 42mm (18" x 5" x 1.65") 1U Rack Mount Standard |
| Weight: | 2.25 Kg |
| Goedkeuring: | CE, RoHS en WEEE |
Content
- DL46 Multifunctionele datalogger 8 + 20 in
- GB10 Gebruiksaanwijzing
Optie
- AA40 Opnemer beveiliging 1800cm
- AD40 Opnemer beveiliging 3000cm
- AV40 Opnemer beveiliging 450cm
- CA40 Opnemer droog contact 1800cm
- CD40 Opnemer droog contact 3000cm
- CV40 Opnemer droog contact 450cm
- HA40 Opnemer water 1800cm
- HD40 Opnemer water 3000cm
- HV40 Opnemer water 450cm
- KT40 Opn temp -40/123 & RV 0/100 30cm
- NV40 Netvoedingsadapter voor DL40/DL45
- TT40 Opnemer temperatuur 30cm
Prijs
Prijs op aanvraag
