Detail

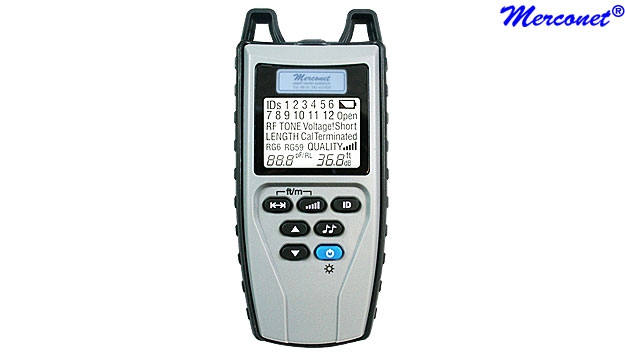

Dark unpowered coax systems give no clue as to their design, condition or configuration. The AHT4 makes it simple and easy to discern the layout of a coax network, locate faults on individual cable runs, identify remotes through splitters, and determine cable run length. In addition, separate cable mapper sets allow a technician to map out the entire coax system and measure the quality and characterization of the overall network for carrying services, such as high grade video, surveillance data and HD programming.
- Fast testing using multiple coax mapper remote sets.
- Quickly discover coax system layout configuration to save time.
- All testing in one unit: Discovery, Quality and Condition.
- Clear concise measurement display for easy understanding of the capability of each run.
The AHT4 is a self contained, hand-held, battery powered analyzer used by contractors, repair technicians, and other authorized users. This device is used to quickly map coax cable runs, measure network performance, determine cable length, and locate faults in “Dark” (unpowered) residential and business cable networks.
Kenmerk
- Test, map, display, and qualify coax run quality
- Identifies cable faults
- Displays coax cable run quality
- Detects Coax RF Remotes through splitters
- Locates splitters in the system
- Tests and grades splitter performance
- Measures cable length up to 457 meters (1,500 feet)
- Wire maps up to 12 coax locations - Testing Modes
Coax Run Mapping
- Maps runs through splitters to show an accurate picture of the coax system layout using up to 4 Coax RF Remotes. Up to 12 ID Only Coax Remotes are also available for wire mapping on home runs
Cable Length
- Determines cable run length and reports the location of an open or unterminated cable
Quality of Network
- Measures overall network quality and clearly depicts network reading as both a bar graph and a digital return loss number, measured in dB
Tone Tracing
- Traces coax runs with four unique tones to quickly distinguish between respective outlets
Specificatie
| Capacitance Length: | Range - 457 meters (0 to 1,500 ft) min at 15pF/ft length constant |
| | Accuracy - 0.5 m (±5% ±1ft) with correct length constant |
| | Length Constant Range - 33 to 131pF/meter (10.0 to 40.0 pF/ft) |
| Quality (Return Loss): | 0.0 to 60.0 dB |
| ID Only Coax Remotes: | 100 ohms maximum DC resistance, center conductor plus shield |
| Coax RF Remotes: | 17dB maximum attenuation to remote location (splitters, cable, etc.) |
| Audio Frequency Tone: | 1,000 and 600 Hz – 4 patterns (High only, Low only, 2 warble tones) |
| | 3.3Vp-p (pin or shield), 6.6Vp-p (both pin and shield) open circuit |
| Radio Frequency Tone: | 10, 20, 30 or 40MHz, 1Vrms into 75 ohms |
| Battery Low Level: | Approximately 4 volts |
| Humidity: | 10% to 90%, non-condensing |
| Altitude: | 3,050 meters (10,000ft) maximum |
| Operating temperature: | 0 to 50°C (32 to 122°F) |
| Storage temperature: | -20 to 60°C (-4 to 140°F) |
| Battery life: | 4 AA alkaline batteries |
| | Standby: 4 years |
| | Active: 20 hours average |
| Size: | 17.3 x 8.0 x 3.3 cm (6.8 x 3.15 x 1.3 inches) |
| Weight: | 340 grams (12.0 oz.) with battery |
| Goedkeuring: | CE, RoHS and WEEE |
Content
- AHT4 Coax tester 4 remotes
- 4000 Aderzoeker set basic
- AHY1 Coax ID Remote 1-12
- AHV5 Kabel schroef F female naar push-on F male
- AHU5 Verloop F female naar BNC female
- AHU6 Verloop plug F-female naar F push-on male (5x)
- AHU7 Verloop F female (5x)
- AHU8 Terminator F male (4x)
- AHX2 Tas
- GB10 Gebruiksaanwijzing
Optie
- AHX3 Coax ID Remote 1
- AHX4 Coax ID Remote 2
- AHX5 Coax ID Remote 3
- AHX6 Coax ID Remote 4
- AIG6 Coax ID Remote 5
- AIG7 Coax ID Remote 6
- AHY0 Coax ID Remote 1-4
- AHY1 Coax ID Remote 1-12
- 4000 Aderzoeker set basic
- AHX0 Tas
- AHX2 Tas
- AHV5 Kabel schroef F female naar push-on F male
- AHU5 Verloop F female naar BNC female
- AHU6 Verloop plug F-female naar F push-on male
- AHU7 Verloop F female
- AHU8 Terminator F male
Prijs
671,55 € (555,00 € exclusief BTW) per stuk
