ACE7 Vloeistof tankwagen veiligheid set



The add to cart button will appear once you select the values above
Detail

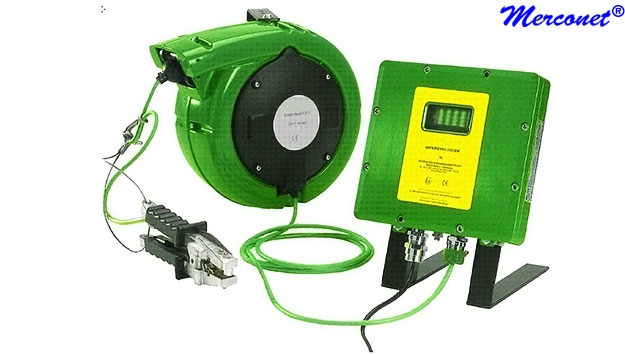

The ACE7 allows safe loading and unloading of mobile tanks (mounted on trucks, wagons or trolleys, oil drum etc.) in which flammable substances are poured at high speed generating electrostatic charges that can cause sparks and explosions. To prevent the accumulation of static electricity, the device verifies that the correct connection to ground is performed before starting the loading procedure, in this way dangerous situations due to failures and human errors can be avoided. The device ACE7 is connected through a bipolar cable, perhaps wound in a cable reel, and clamped to a mobile tank. Alternatively, with ACF7, it is possible to connect separately two cables with corresponding clamps, e.g. one to the trailer and one to the semi-trailer ACE7 has been designed and built on the basis of ATEX 94/9/CE directive with type of protection EEx-d [ia] IIB T6 and completely water tight (IP66).

Kenmerk
  • Consists in an aluminium alloy housing containing the electronic circuit
  • Weatherproof (IP 66) and as a safety compliant device according to EN61010-1
Specificatie
I cable entries: n° 2 holes ½ ” NPT
  n° 1 holes ½ ” NPT with cable gland
  n° 2 holes ½ ” NPT
  n° 2 holes ½ ” NPT with cable glands
II cable entries: n° 2 holes ½ ” NPT
  n° 2 holes ½ ” NPT with cable glands
Housing material: Aluminium casting
Suitable for Ex environment II (1) GD: Protection mode EExd [ia] IIB T6 IP66 T 85°C. Approval INERIS 03ATEX 0073
Weatherproof: IP66 Approval INERIS
Display: Red/ green high efficiency LED matrix.
Calibration display: Red LED line
Calibration: From outside by ELECTRONIC KEY
BY-PASS: From outside by ELECTRONIC KEY
Output permissive contacts: n° 2 free voltage conta cts (NO-NC-C) 250V/5A
Fixing: By means of n° 4 holes Ø10
Clamp outputs: Intrinsically safe (blue terminal block)
Humidity: 5 ÷ 95 % UR
Power supply: 115 / 230VAC +10 – 15%, 50¸60Hz
Consumption: 10 VA
Operating temperature: -25 ÷ +55°C (248÷328 K)
Storage temperature: -40 ÷ +65°C (233÷338 K)
Dimensions: 277 x 265 x 55 mm (without cable glands)
Weight: 7 kg approx.
Goedkeuring: CE, RoHS en WEEE
Content
- ACE7 Vloeistof tankwagen veiligheid set
Optie
- ACE8 Set with Clamp SRC-2 and 5 m cable ACE7
- ACE9 Set with Reel CR-1 ACE7
- ACF0 Reel CR-1 ACE7
- ACF1 Isolated wall mounting support ACE7
- ACF2 Clamp SRC-2, bi-polar from Aluminium Alloy ACE7
- ACF3 Clamp with wide opening ACE7
- ACF4 Set Clamp SRC-2 and 5 m cable ACE7
- ACF5 Electronic Board ACE7
- ACF6 Electronic Key calibration & by-pass ACE7
